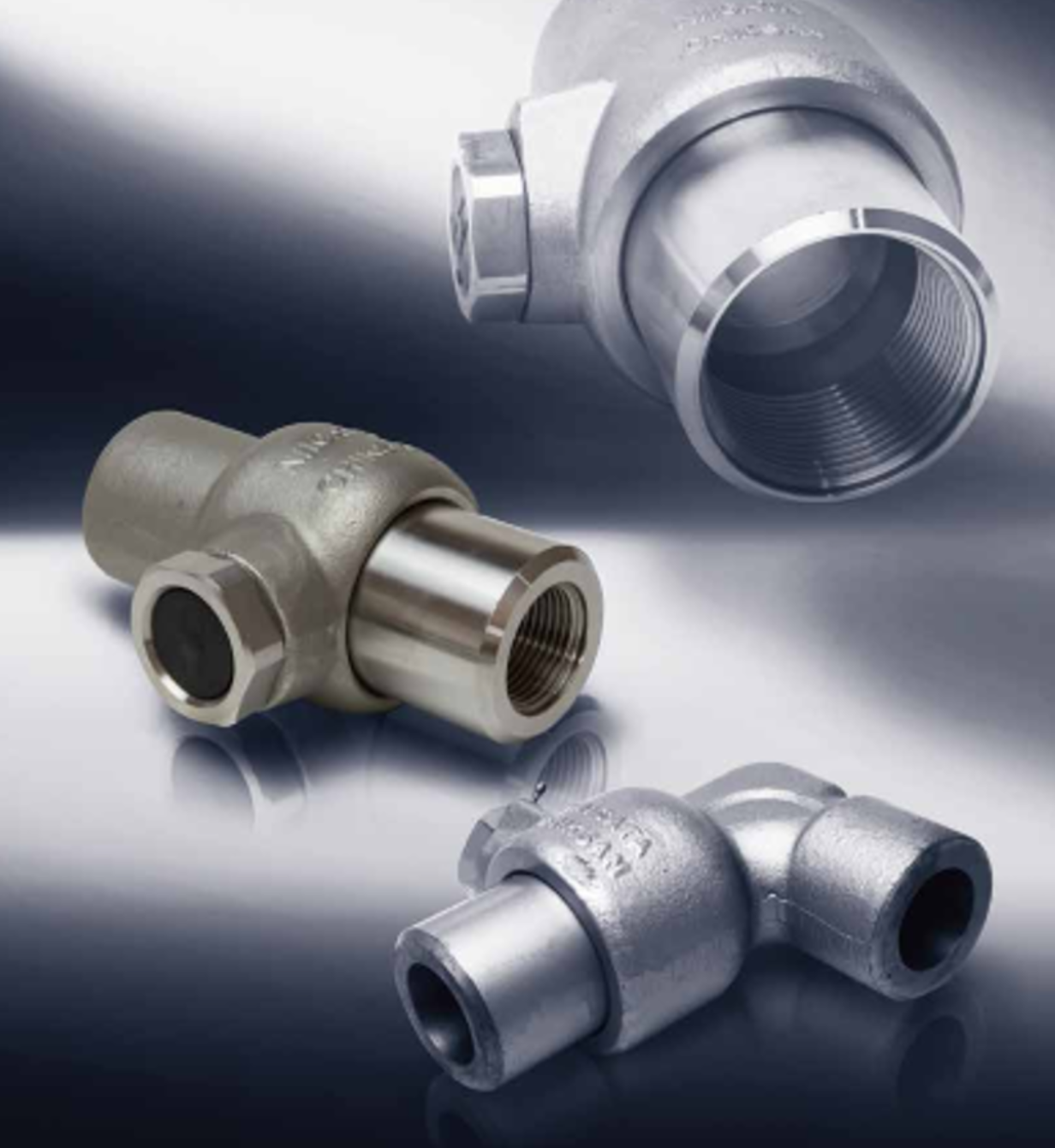

Industrial swivel joint solutions are mechanical components designed to allow rotational movement between connected parts while maintaining a secure and leak-proof seal. They are commonly used in piping systems, fluid transfer applications, and heavy machinery to prevent hose twisting, reduce stress, and improve flexibility.
Industrial swivel joints are essential components that allow 360° rotation in piping and fluid transfer systems. They prevent hose twisting, improve flexibility, and enhance equipment durability.
When hoses or pipes are fixed in place, movement can cause them to twist, leading to cracks or leaks.
These joints use sealed connections to prevent fluid leakage, even under high pressure.
Swivel joints enable fluid and gas transfer even in dynamic or moving systems.

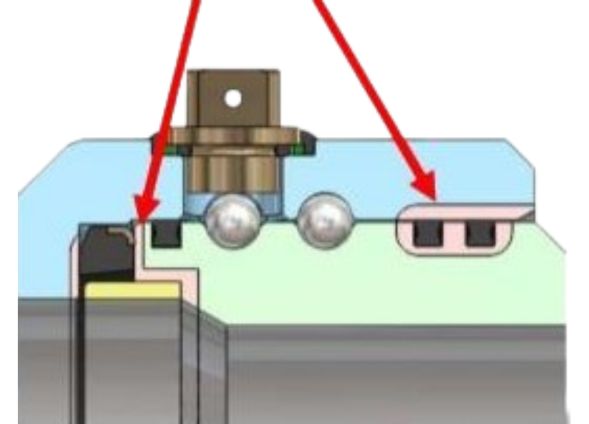

The symmetric design optimally disperses stress on swivel joints and reduces the impact of unpredictable pontoon movement or mixer-induced flow.

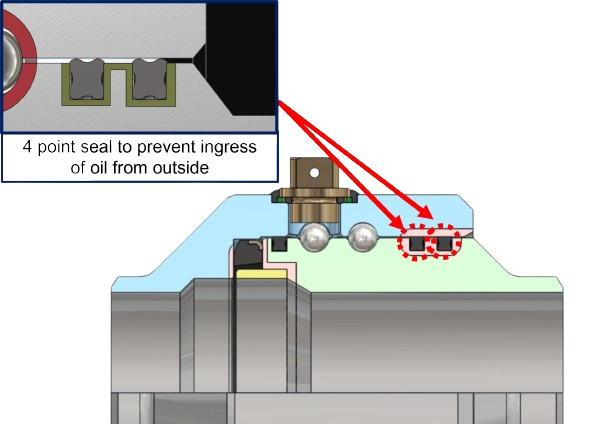

Double seals provide superior reliability, safety, and environmental protection, making them the ideal choice for critical applications across various industries.

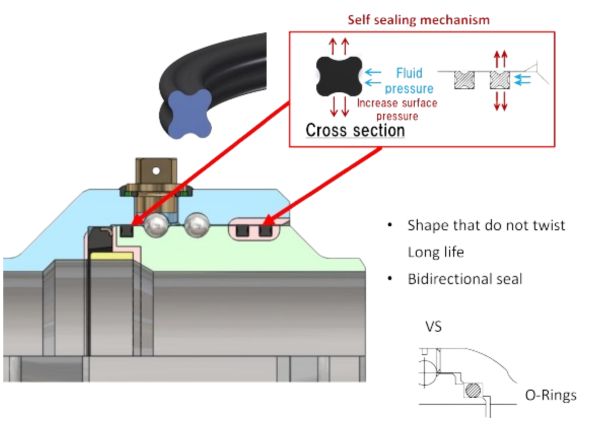

X-rings provide enhanced sealing performance, lower friction, and superior resistance to extrusion and rolling, making them ideal for dynamic, high-pressure environments.

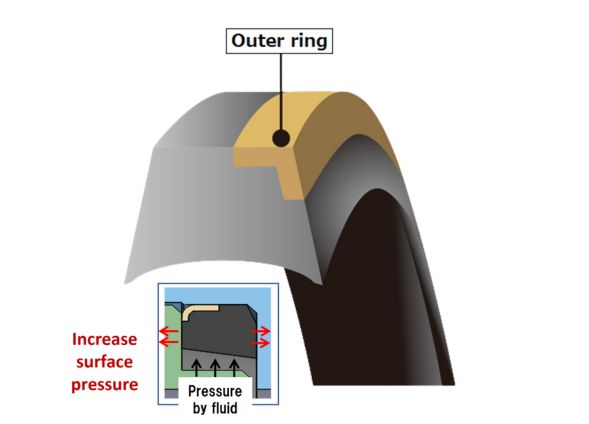

The unique trapezoidal cross-section of the special packing structure ensures a reliable seal and extended lifespan, while the outer ring prevents protrusion and seal damage from twisting.

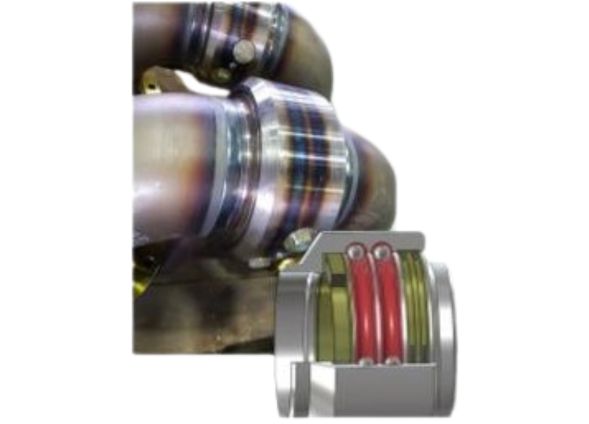

Stainless steel cladding combines aesthetic appeal, exceptional durability, corrosion resistance, and low maintenance for long-lasting performance.
Flame hardening treatment enhances strength in critical areas, such as the ball race track, ensuring improved durability and performance.
| Specification | Details |
|---|---|
| Fluid Type Range | 725 |
| Maximum Pressure | 34 MPa |
| Nominal Diameter (ND) Range | 3/8"–30" |
| Temperature Range | -50 to +200 ℃ |

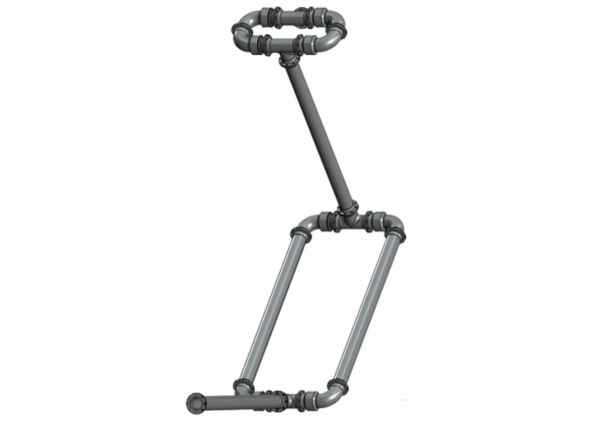

Reliable solutions for drainage system in floating roof tank and fluid suction skimmers.
Widely used in industries such as food and beverage, transportation, chemical processing, steel manufacturing, and marine applications, these systems provide flexible piping solutions that accommodate structural movement and dynamic operating conditions
